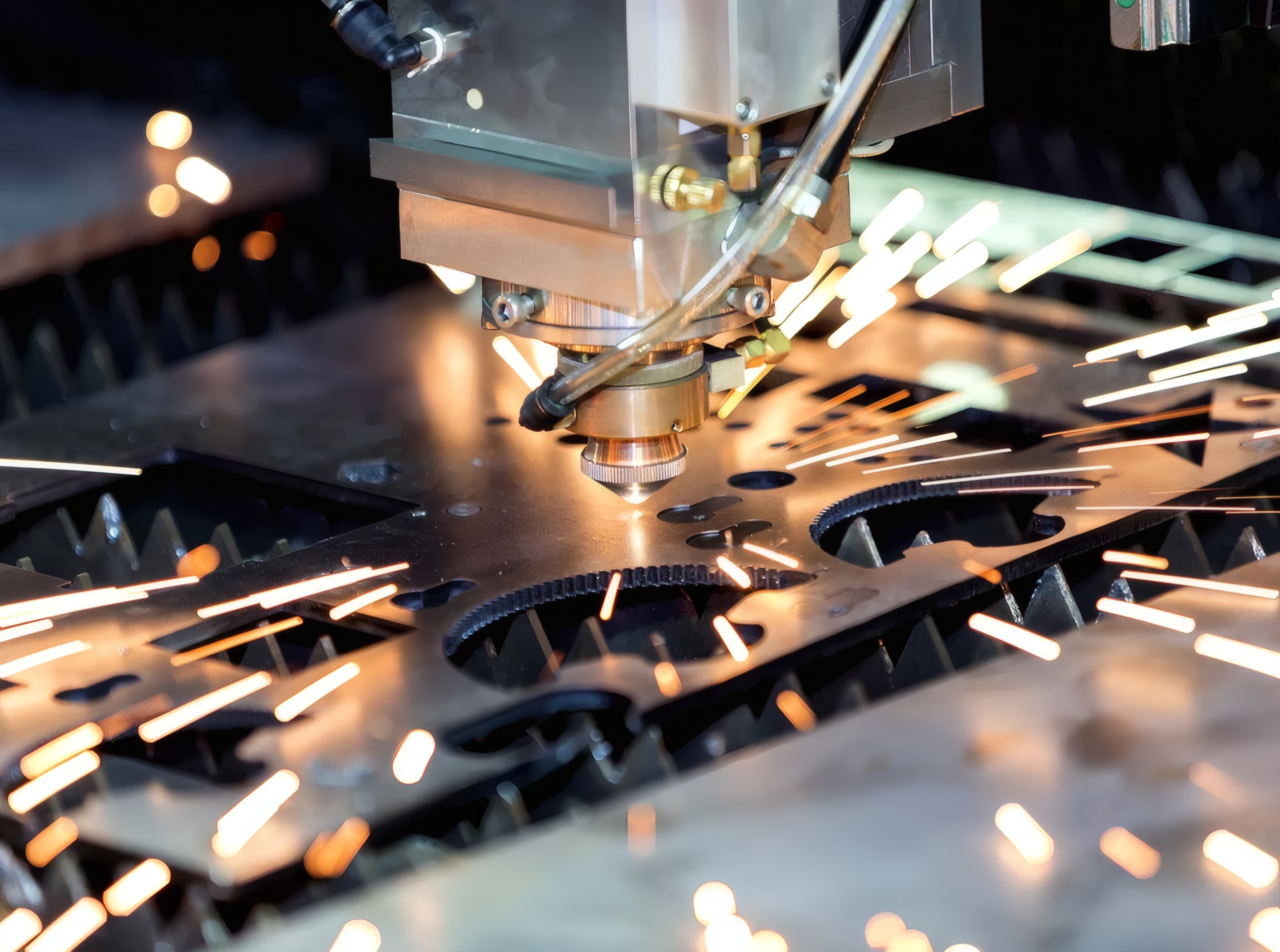

Laser Cutting
Steel to 25 mm, stainless to 20 mm, aluminium to 15 mm on a 3000 x 1500 mm bed.
- Up to 3 mm±0.05 mm
- 3 - 10 mm±0.1 mm
- 10 - 20 mm±0.15 mm
- 20 - 25 mm±0.2 mm
What we do
Our Capabilities
Six processes under three roofs, each with the tolerance it holds.
What we doSix Processes, Each With
Six Processes, Each With
The Tolerance It Holds
Every capability runs in the plant built for it; every tolerance below is measured on the first article of every new part.
640640 PeopleIn three plants
CNC Bending
Six press brakes up to 320 t over four metres, angle-measured on every bend.
- Angle±0.5°
- Flange length±0.2 mm
- Longest bend4,000 mm
- Thickest bend20 mm
Welding & Fabrication
MIG / MAG, TIG and robot cells for frames, skids, girders and pressure-free vessels.
- ProcessesMIG / MAG, TIG, robotic
- QualityEN ISO 3834-2
- Execution classEXC3 to EN 1090
- Assembly±1 mm a metre
Coating & Galvanising
Powder in any RAL colour and a 14 m galvanising kettle under one roof.
- Powder film60 - 80 micron
- Galvanised85 micron, ISO 1461
- Kettle14 x 2 x 3 m
- ColoursAny RAL
CNC Machining
Milling, drilling and tapping after cutting and welding, so holes line up on the finished part.
- Milling±0.02 mm
- TappingM3 - M36
- Table3,000 x 1,200 mm
- SurfaceRa 1.6
Assembly & Kitting
Hardware fitted and torqued, kits packed by your part numbers, first article inspected.
- KitsBy part number
- HardwareFitted and torqued
- Inspection100% first article
- PackingPallet or crate
From drawing to dock
One Order, Six Steps
- 01
Send The Drawing
DXF, STEP or a PDF sketch.
- 02
Quote In A Day
Price, lead time, ship date.
- 03
Nest & Cut
Nested to cut scrap, then cut.
- 04
Form & Weld
Bent, welded, machined.
- 05
Inspect & Coat
First article, then the finish.
- 06
Deliver
Our trucks, 500 miles.
CertifiedHeld To The Standards
Held To The Standards
You Ask For
ISO 9001:2015
Quality Management
Valid to Mar 2029
EN 1090-2 EXC3
Execution Of Steel Structures
Valid to Jun 2028
ISO 3834-2
Comprehensive Welding Quality
Valid to Apr 2027
ISO 14001:2015
Environmental Management
Renewal due Dec 2026
ISO 45001:2018
Health And Safety
Valid to Feb 2028
AWS D1.1
Structural Welding Code
Valid to Jun 2027
Instant pricingA Price And A Ship Date
A Price And A Ship Date
While You Choose
Grade, thickness, size, bends, welds and finish: the quote builder prices a part with the same rates our estimators use.
